Description
Technical Specifications
| # | Item | Unit | Specification |
|---|---|---|---|
| 1 | Model Name | – | 9YF-1900 Mid-Size Square Baler |
| 2 | Hitching Method | – | Towed-type |
| 3 | Picking Width | mm | 1900 |
| 4 | Picker Structure | – | Spring Tooth Type |
| 5 | Feeder Structure | – | Fork Feeding Mechanism |
| 6 | Knotter Type | – | D-Type |
| 7 | Number of Knotters | pc | 2 |
| 8 | Compression Chamber Section (W x H) | mm | 460 x 360 |
| 9 | Baling Method | – | Automatic Rope Baling |
| 10 | Matching Power Range | kW | 36.8 – 73.5 (50-100 HP) |
| 11 | Overall Dimension (L x W x H) | mm | 4965 x 2640 x 1750 |
| 12 | Machine Weight | kg | 1850 |
Not every operation requires the widest or most powerful machine in the range. The 9YF-1900 delivers a practical 1900 mm working width with a power compatibility span of 36.8 to 73.5 kW — the broadest tractor-matching range of any model in the Ever-Power square baler lineup. Whether your fleet runs at 50 HP or 100 HP, this machine operates without overspecifying either the tractor or the baler investment.
Product Overview

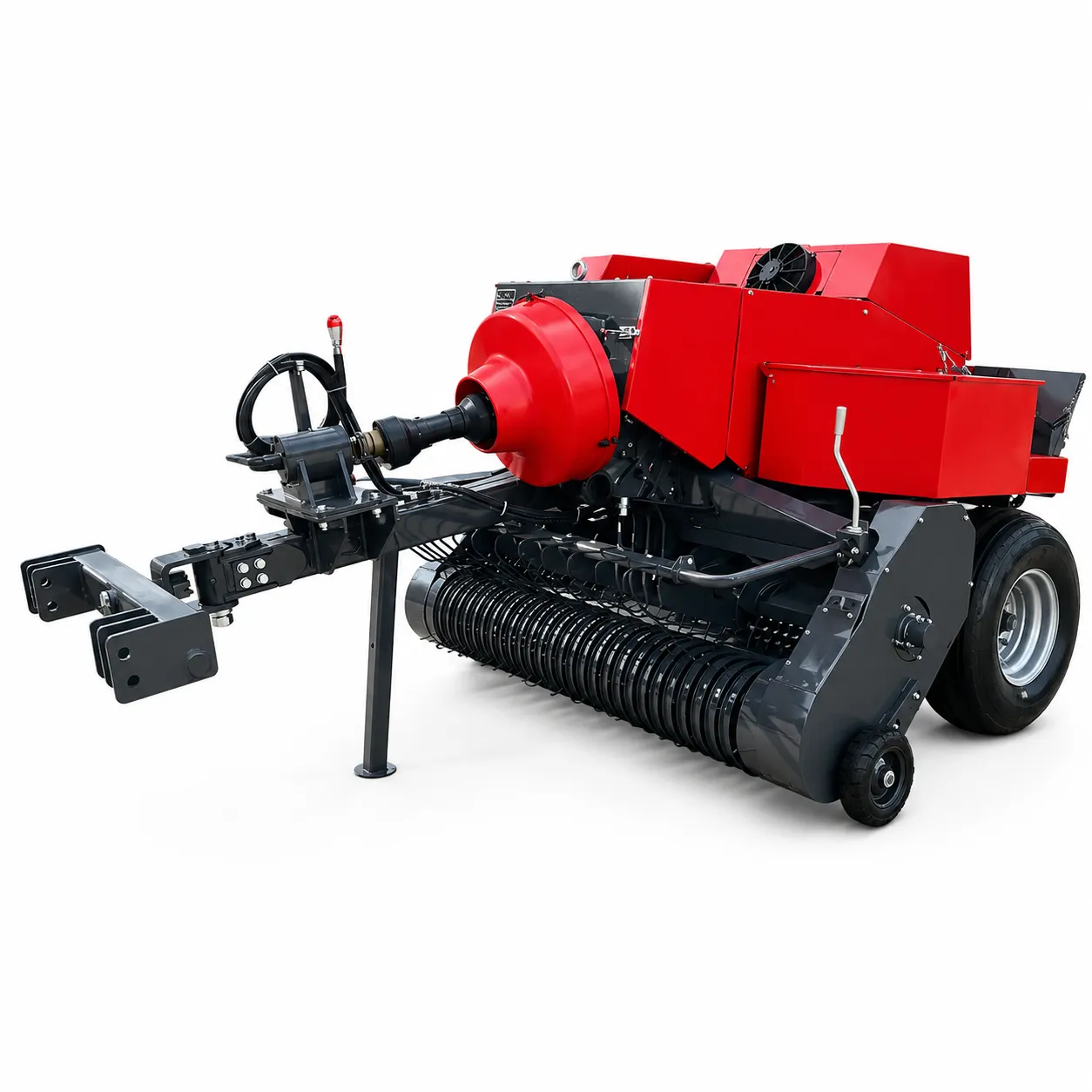

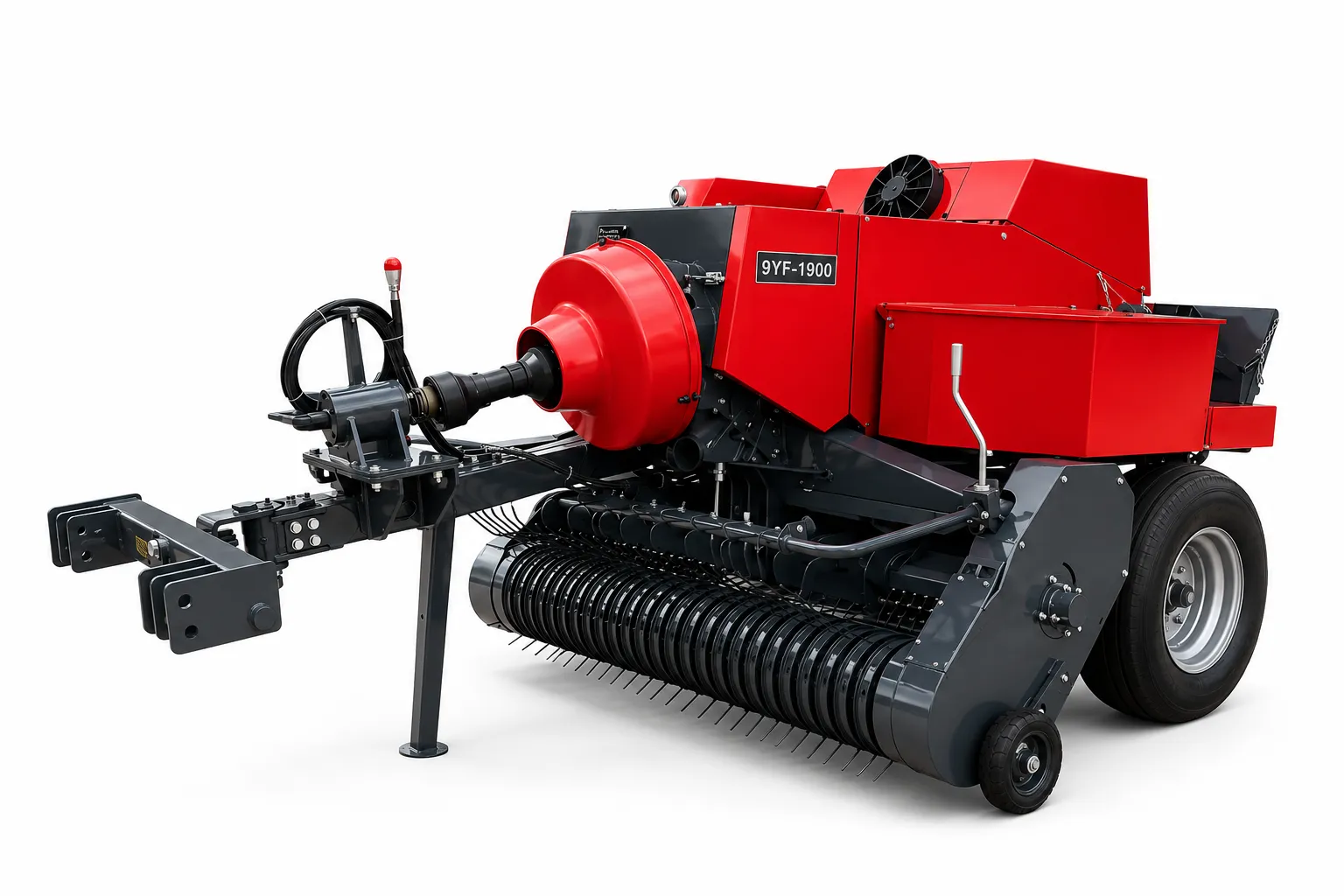

The 9YF-1900 is a towed single-chamber square baler positioned between the compact 9YF-1700 and the wide-body 9YF-2200 in the Ever-Power range. It carries a 1900 mm spring-tooth pickup, twin D-type knotters, and a fork feeding mechanism delivering material into a 460 x 360 mm compression chamber — the same cross-section used across all standard Ever-Power square balers, ensuring dimensional bale consistency for stacking and transport logistics.
At 1850 kg and 4965 mm in length, the 9YF-1900 is notably compact for a 1900 mm class baler. Road transport between sites is straightforward on a standard flatbed trailer without oversize permits. Its uniquely wide power range — 36.8 to 73.5 kW (50 to 100 HP) — is wider than both the 9YF-1700 and the 9YF-2200, making it the most versatile machine in the standard series when matching to a mixed tractor fleet.
Key Features
Widest Tractor Power Compatibility in the Range: 36.8 to 73.5 kW
No other model in the Ever-Power standard square baler series accepts as wide a range of tractor power as the 9YF-1900. Compatible from 50 HP to 100 HP, it spans the full width of the mid-range tractor class most commonly deployed across South Asian, Southeast Asian, and African farming operations. For farming contractors who service clients with different tractor sizes, this means the 9YF-1900 can move between engagements without swapping machines. For farms transitioning from smaller to larger tractors over time, the same baler remains compatible through the upgrade.

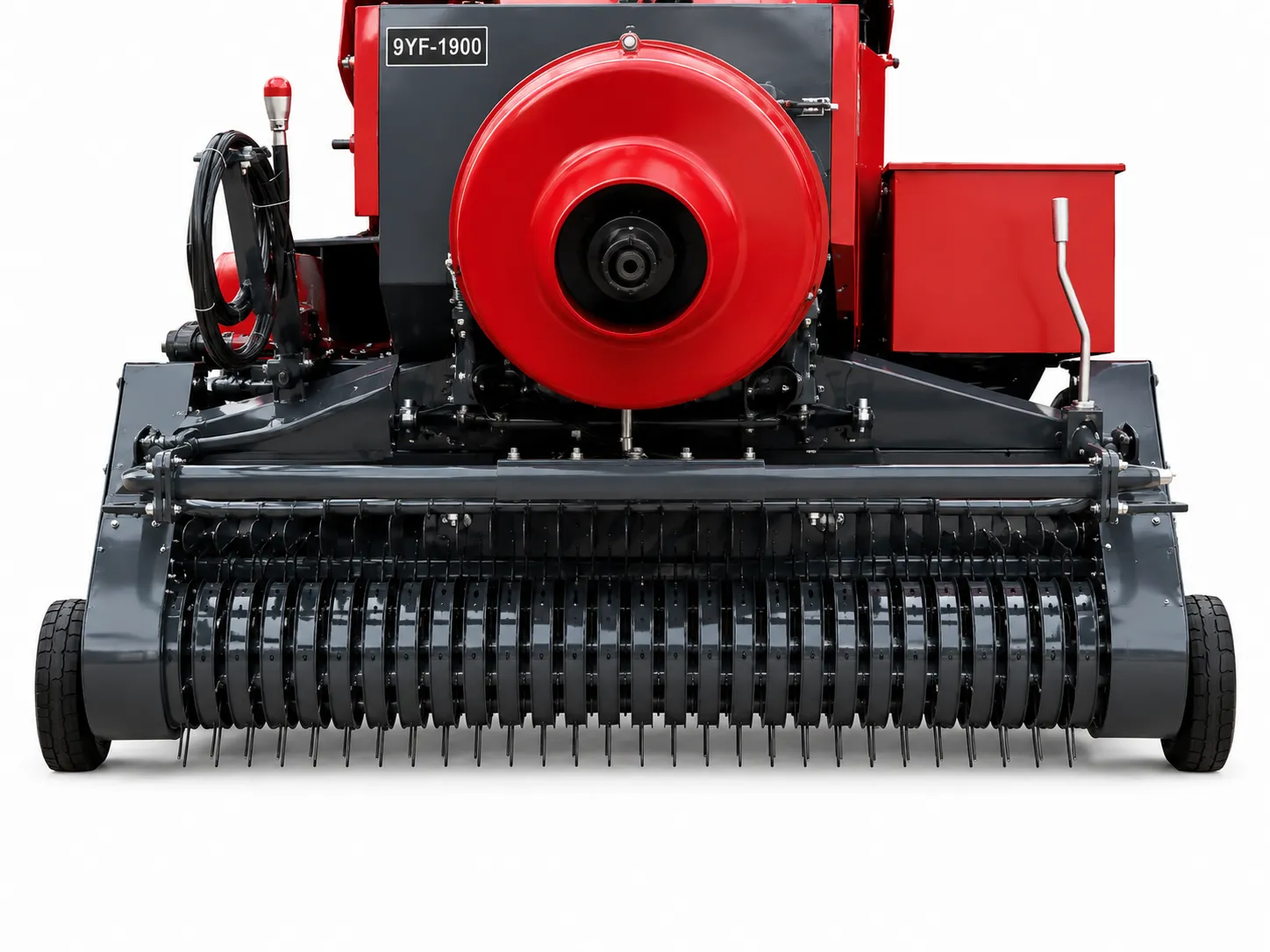

1900 mm Spring-Tooth Pickup
The 1900 mm spring-tooth reel clears mid-width windrows in a single pass. This width is well matched to windrow patterns produced by rotary rakes and disc mowers in the 1.6-1.8 m working range — the most common mower class deployed alongside this tractor size tier. Spring teeth maintain ground-contact pressure on uneven terrain, recovering material that would otherwise be left behind while the flexible mounting prevents tine damage from soil contact. Material is delivered evenly to the fork feeding mechanism across the full pickup width.
Compact Transport Dimensions and Low Operating Weight
At 1850 kg, the 9YF-1900 is 100 kg lighter than the 9YF-2200 and fits within the payload rating of most agricultural flatbed trailers without specialist arrangements. The 4965 mm overall length and 2640 mm width clear the dimensions of standard country road and gateway widths encountered in most farm environments. For contractors moving daily between sites, this logistical lightness translates directly into reduced transport time and lower operating cost.

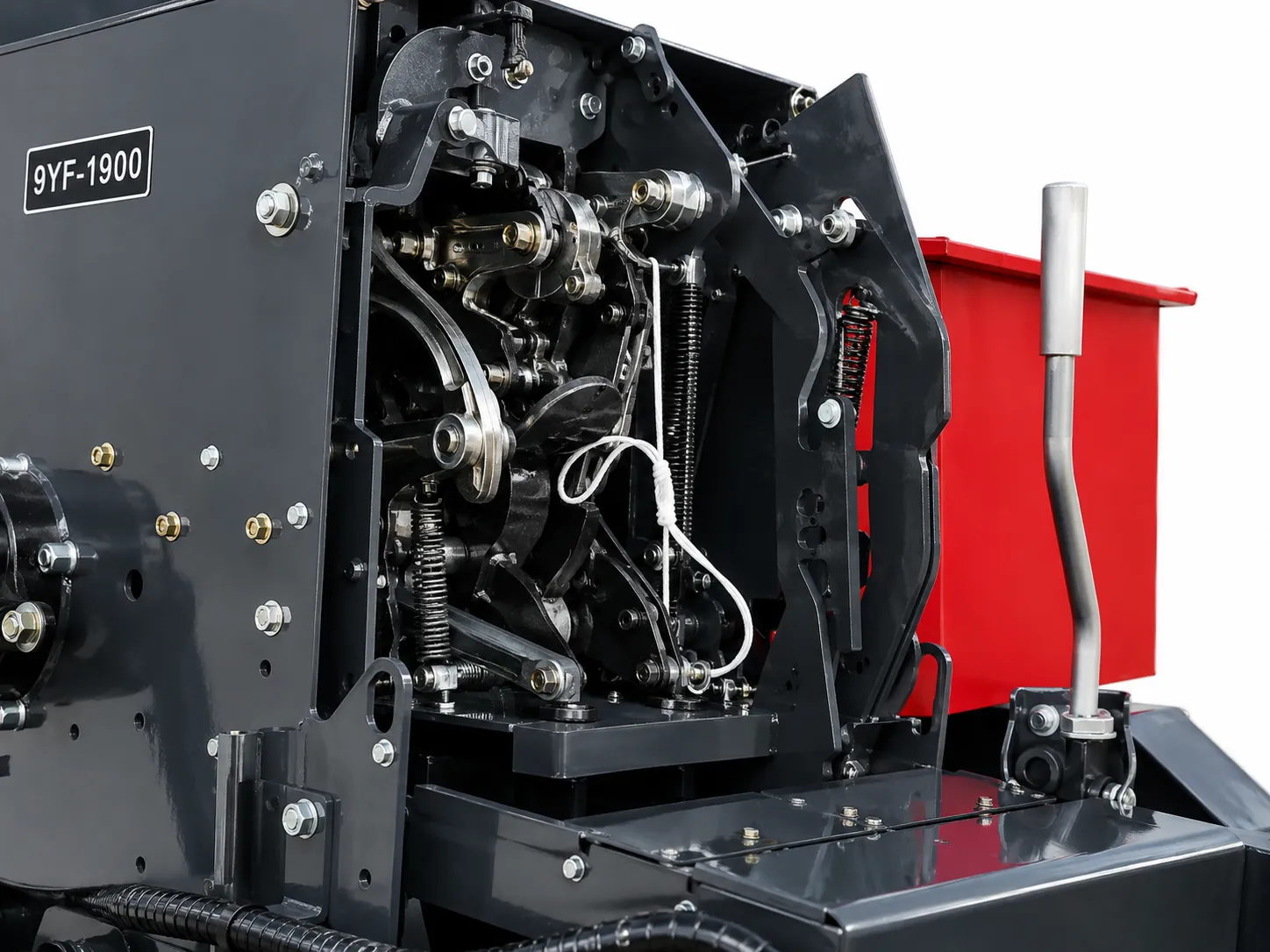

Automatic D-Type Knotter Rope Baling
Twin D-type knotters tie two securing ropes per bale automatically. Bale length and compression density are independently adjustable by the operator to accommodate different crop types and end-use requirements — tighter for commercial straw trading, looser for farm roughage storage. The knotter access panels are positioned for ground-level servicing without ladder or platform.
460 x 360 mm Chamber — Series-Standard Bale Dimensions
The 460 x 360 mm compression chamber cross-section is standardised across the entire Ever-Power square baler range. Bales from the 9YF-1900 are dimensionally identical to those from the 9YF-1700, 9YF-2200, and 9YF-2200S. This matters in practice: handlers, conveyors, storage racking, and container-loading configurations designed for one model’s output work without modification with any other model in the series.
Field Applications and Typical Use Cases

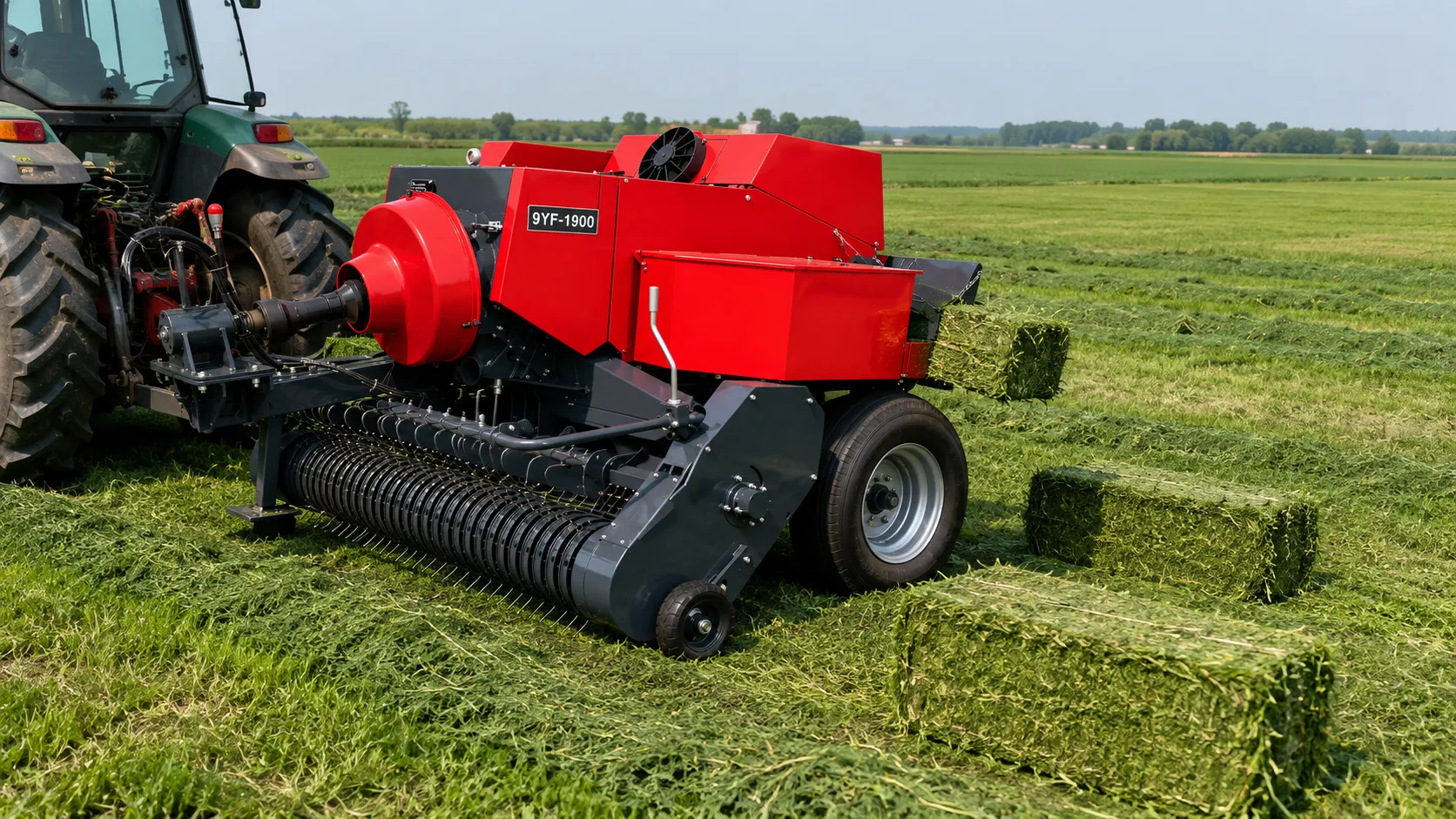

The primary crop applications include wheat straw, rice straw, cotton stalk, corn stover, alfalfa, and a wide range of cultivated and wild forage grasses. Baled output from this machine serves a range of downstream uses depending on regional agricultural practice and buyer requirements: livestock roughage feed, commercial fodder baling, crop residue recycling, biomass energy feedstock, and post-harvest field management.
Square bales produced by this machine are stackable to uniform heights, making them well suited to container loading, covered warehouse storage, and mechanical handling with telehandlers and front-loaders. The consistent 460 x 360 mm cross-section across all Ever-Power standard models ensures that bale handling and storage infrastructure designed for one model is fully compatible with others in the range.
Operating Conditions
Flat ground and low-slope paddy fields are ideal. Recommended crop moisture content: below 25%. The 1900 mm pickup width suits windrow widths of 1.4-1.8 m most efficiently. Fields should be free of large stones and hard obstructions that could damage the spring-tooth assembly.
How It Works
Step 1 — Pickup
The 1900 mm spring-tooth reel lifts and conveys windrowed material to the fork feeding mechanism for controlled entry into the compression chamber.
Step 2 — Compression
Material is packed layer by layer into the 460 x 360 mm chamber by the reciprocating plunger, building uniform density throughout the bale.
Step 3 — Binding and Ejection
At the set bale length, the two D-type knotters fire, tying the bale with two ropes before it is ejected from the rear outlet.
Choosing the Right Model
The Ever-Power square baler range covers entry-level compact machines through specialist shredder-equipped models. Use the comparison below to confirm this model is the right fit for your tractor, crop type, and field scale, or to identify which alternative better matches your requirements.
| Model | Pickup Width | Min. Power | Key Differentiator | Best For |
|---|---|---|---|---|
| 9YFS-2.2 | 2200 mm | >=51.5 kW (70HP) | Dual chamber, 2 bales/cycle | Commercial contractors, highest throughput |
| 9YF-2200 | 2200 mm | >=36.8 kW (50HP) | Wide single chamber, 50HP+ | Large farms, wide windrow fields |
| 9YF-1900 | 1900 mm | 36.8-73.5 kW | Widest power range in series | Mixed-HP fleets, medium-large farms |
| 9YF-1700 | 1700 mm | 29.5-73.5 kW (40HP+) | Lightest, lowest entry power | Small farms, compact tractors |
| 9YF-2200S (SC) | 2200 mm | >=73.5 kW (100HP) | Single crusher, corn stalk capable | Corn, sorghum, cotton stalk fields |
| 9YF-2200S (DC) | 2200 mm | >=73.5 kW (100HP) | Dual crusher + dust removal fan | Livestock feed, silage-quality bales |
If you are unsure which model suits your operation, contact our team at [email protected] with your tractor HP, crop type, and average field size. We will recommend the most appropriate model.
Frequently Asked Questions
Certification and Quality
Every machine carries CE and ISO credentials verified at the production stage. Certification documentation is provided with each shipment to support import procedures and buyer due diligence in international markets.
Packing and Shipping
Export-ready packaging is standard. Lead time is 15-30 working days. Our logistics team handles container booking, crating, and pre-shipment inspection. Complete export documentation provided with every shipment.
Maintenance and After-Sales Support
Keeping your 9YF-1900 Mid-Size Square Baler in peak condition requires only routine attention. Before each operating season, inspect and lubricate all PTO shaft joints, knotter bill hooks, and pickup tine bearings. Check twine thread paths for wear and replace any frayed guides before baling begins. After each working day, remove accumulated crop residue from the compression chamber, pickup reel, and knotter covers to prevent moisture retention and premature corrosion.
Ever-Power supplies genuine spare parts globally with typical dispatch in 3-5 business days. Critical wear items — D-type knotter bill hooks, twine discs, spring-tooth tines, and plunger wear strips — are stocked for all models. Operation and maintenance video guides are available upon request. Our technical support team is reachable by email at [email protected] within 24 hours.
Trusted Manufacturing. Global Reach.
Ever-Power exports square balers and agricultural equipment to markets across South Asia, Southeast Asia, Africa, the Middle East, and beyond. Our quality control process covers incoming material inspection, in-process dimensional checks, and a full pre-shipment functional test before any machine is loaded for export.
Factory-direct pricing eliminates distributor margins. Full export documentation — CE certificate, commercial invoice, packing list, and B/L — is provided with every shipment. [email protected] | Contact Us.
Explore More From Ever-Power
Get in Touch with Ever-Power
For pricing, OEM options, and availability reach us at [email protected] or submit an enquiry online.
Bale Storage and Handling
Square bales from the 9YF-1900 can be stored in the open field short-term — the two-rope binding holds the bale shape securely during field collection. For longer-term storage, covered warehousing is recommended to prevent moisture absorption, particularly for straw intended for livestock bedding or commercial sale. The 460 x 360 mm cross-section stacks stably up to 6-8 bales high under manual or mechanical stacking, and bales from this model are dimensionally identical to those of all other standard Ever-Power square balers, ensuring compatibility with existing handling infrastructure.
All specifications are for reference only. Product may vary without prior notice. Ever-Power reserves the right of final interpretation.
